Fire protection
The Broszeit fire protection programme provides you with a high-performance fire protection programme for interior applications. Our non-combustible Grenamat fire protection panels are made of the natural raw material vermiculite and can resist temperatures of up to 1,200 degrees. Due to their open-pored structure, they also have a sound-absorbing effect and achieve good values in terms of thermal conductivity.
Features
The non-combustible Grenamat fire protection panels can be easily processed with common tools and woodworking machines and are certified according to DIN EN 13501–1 A1 or DIN EN 13501–1 A2-s1,d0 (Grenamat AL/AL light) or according to IMO for shipbuilding (Grenamat A/A light).
Areas of application
Structural and decorative interior finishing, wall covering, ceiling covering, furniture construction, shipbuilding, protection of metal structures, lift shafts and ventilation shafts.
[do_widget id=custom_html‑4]
-
Non-combustible fire protection panels for structural and decorative interior fittings
Grenamat AL/ AL light are non-combustible fire protection panels made of vermiculite which are certified according to DIN EN 13501-1 A1 or DIN EN 13501-1 A2-s1,d0. The panels are made of the naturally occurring raw material vermiculite and can withstand temperatures of up to 1200° C. Grenamat AL/ AL light are used as non-combustible panels in structural and decorative interior finishing to protect existing metal constructions from fire and heat. As wall or ceiling coverings in the area of escape routes or as non-combustible wall coverings in lift shafts. In addition, the panels can be used to protect ventilation shafts or in highly sensitive areas in terms of fire protection. A positive property of the vermiculite board is that a good sound-absorbing effect can be achieved due to the open-pored structure. In addition, the panels have a positive effect in terms of thermal conductivity. The panels can be processed without any problems using standard tools and woodworking machines. -
Non-combustible fire protection panels for structural and decorative interior work
Grenamat AL / AL light are non-combustible fire protection panels made of vermiculite that are certified according to DIN EN 13501-1 A1 or DIN EN 13501-1 A2-s1, d0. The panels are made from the naturally occurring raw material vermiculite and can withstand temperatures of up to 1200 ° C. Grenamat AL / AL light are used as non-flammable panels in structural and decorative interior work to protect existing metal structures from fire and heat. As wall or ceiling cladding in the area of escape routes or as non-flammable wall cladding in elevator shafts. In addition, the panels can be used to protect ventilation shafts or in highly sensitive areas with regard to fire protection. A positive property of the vermiculite plate is that the open-pored structure enables a good sound-absorbing effect to be achieved. In addition, the plates have a positive effect on thermal conductivity. The panels can be processed without any problems using common tools and woodworking machines. -
Weight: 750 kg/m3 with a panel thickness of 19 mm Certified according to DIN EN 13501-1: A1 non combustible available thicknesses: 10 - 55 mm Standard decors: maple D061, oak D070, macassar D065, white E111, light gray E6, anthracite E50, red E13, royal blue E18, black E11, others available on request
-
Weight: 520 kg/m3 with a panel thickness of 19 mm Certified according to DIN EN 13501-1: A1 non combustible available thicknesses 16 - 30 mm Standard decors: maple D061, oak D070, macassar D065, white E111, light gray E6, anthracite E50, red E13, royal blue E18, black E11, others available on request
-

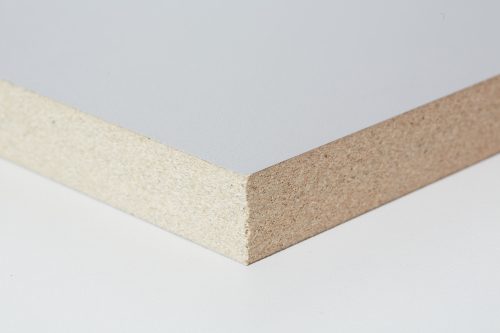

Weight: 750 kg/m3 with a panel thickness of 19 mm Certified according to DIN EN 13501-1 in composite with CPL: A2-s1, d0 available thicknesses: 10 - 55 mm Standard decors: white RAL 9010 and light gray RAL 7035
-
-
Weight: 750 kg/m3 with a panel thickness of 19 mm
Certified according to DIN EN 13501-1 in composite with primer paper: A2-s1,d0
available in thicknesses: 10 - 55 mm -
Weight: 19 mm: 520 kg / m3
Certified according to DIN EN 13501-1 in composite with primer paper: A2-s1,d0
available Thicknesses: 16 - 30 mm -
Non-combustible fire protection panels for structural and decorative interior fittings
Weight: 19 mm: 750 kg / m3
Certified in accordance with DIN EN 13501-1 in composite veneer: A2-s1,d0
available in thicknesses 10- 55 mm
Available veneers: beech oak maple, others on request -
Non-combustible fire protection panels for structural and decorative interior fittings
Weight: 19 mm: 520 kg / m3
Certified in accordance with DIN EN 13501-1 in composite veneer: A2-s1,d0
available thicknesses 16 - 30 mm
Available veneers: beech oak maple, others on request -

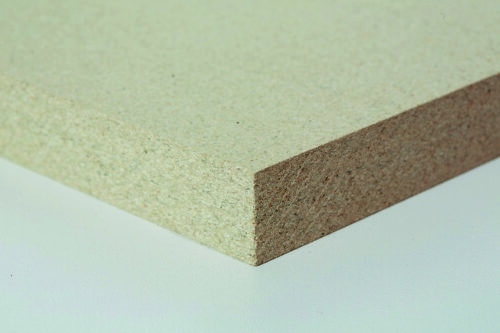

Non-combustible fire protection panel for shipbuilding
Grenamat A / A light are non-combustible fire protection panels made of vermiculite, certified for shipbuilding according to MED. The panels are made of the naturally occurring raw material vermiculite and can withstand temperatures of up to 1200 °C. Grenamat A / A light are used as non-combustible panels especially in shipbuilding. They serve as a covering for the actual ship's structure to protect it from fire damage. Other possible applications for Grenamat A / A light panels include decorative wall or ceiling panelling and in furniture construction. A positive property of the vermiculite board is that a good sound-absorbing effect can be achieved due to the open-pored structure. In addition, the panels have a positive effect in terms of thermal conductivity. The panels can be processed without any problems using standard tools and woodworking machines. -
Non-combustible fire protection panel for shipbuilding
Grenamat A / A light are non-combustible fire protection panels made of vermiculite, certified for shipbuilding according to MED. The panels are made of the naturally occurring raw material vermiculite and can withstand temperatures of up to 1200 °C. Grenamat A / A light is used as non-combustible panels especially in shipbuilding. They serve as a covering for the actual ship's structure to protect it from fire damage. Other possible applications for Grenamat A / A light panels include decorative wall or ceiling panelling and in furniture construction. A positive property of the vermiculite board is that a good sound-absorbing effect can be achieved due to the open-pored structure. In addition, the panels have a positive effect in terms of thermal conductivity. The panels can be processed without any problems using standard tools and woodworking machines.
We manufacture to measure.
When it comes to machining, we are also experienced experts who are very familiar with all the relevant processes. Cutting to size, CNC drilling and milling, coating, varnishing, pre-assembly, edge processing, oiling, attaching space protection strips… Broszeit supplies you with everything exactly in the desired form — from composite elements and fine veneered wood materials to the finished furniture part.
